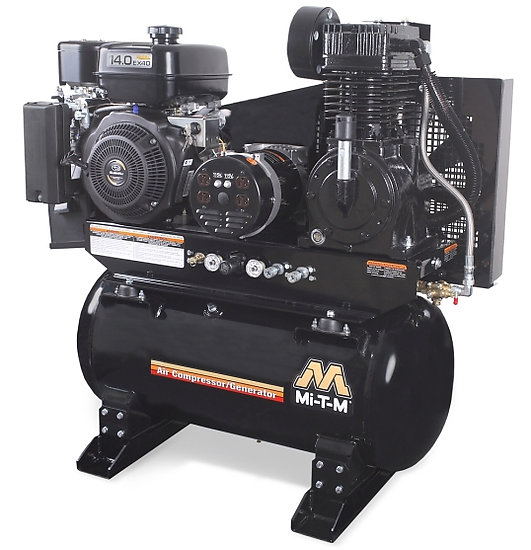

30-Gallon Two Stage Gasoline AG2-SR14-30M
AG2-SR14-30M
Compressor Pump: Quality cast iron two stage compressor · Durable stainless-steel braided discharge hose for longer life · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter
Generator: Brushless alternator · Industrial 4000-watt generator with (2) 120V, 20A and (1) 240V, 20A receptacles · Total harmonic distortion (THD) less than 6% · 100% copper windings
Engine: Industrial Subaru EX40 OHC engine
Frame: Powder coated ASME coded 30-gallon receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch flywheel for extra cooling and longer life · Quality pilot valve unloader · Belt tightening system pulls engine straight to ensure constant belt alignment
*Equipped with 150-PSI maximum rated regulator.
Specifications
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
| Alternator Wattage/Maximum Output | 4000 watts |
| Alternator Wattage/Continous with Compressor On-Load | 2300 watts |
| Alternator Wattage/Continous with Compressor Off-Load | 3500 watts |
| Receptacles | (2) NEMA 5-20R, (1) NEMA L6-20R |
| Displacement/Engine | 404cc Subaru EX40 OHC |
| Compressor | Two Stage, cast iron |
| Mobility | Stationary Air Compressor/Generators |
| Stage | Two Stage Air Compressor/Generators |
Weights & Dimensions
| Net Weight | 450.00 lbs. |
| Shipping Weight | 550.00 lbs. |
| Length | 40.00 in. |
| Width | 24.50 in. |
| Height | 45.00 in. |
Electric Start (battery, box and cables not included) AX-0062
For easy starting
Lifting Hook AX-0063
For easier portability
Electric Start (battery box and cables included, battery not included) AX-0065
For easy starting
Vibration Isolator Pads IX-0001
Isolators protect the unit from vibration during use
Idle Down AX-0069
When activated it automatically throttles down engine to conserve fuel, includes electric start - battery not included
Battery Tray, Box and 2-Foot of Cables Included AX-0070
Attaches to engine side of unit
