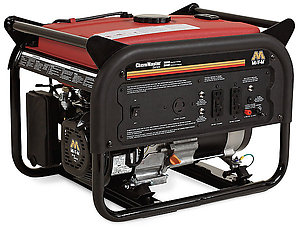

GEN-3600-0MM0

Engine: Mi-T-M OHV engine low-oil shutdown engine · Recoil starting system

Alternator: Brushed 120V alternator · Copper and aluminum windings · Total harmonic distortion (THD) less than 6%

Frame: Low profile, compact design · Wraparound frame with 1-inch steel tubing

Components: Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Large low-tone mufflers · Engine on/off switch · Fuel shut-off valve · DC/battery charging

Specifications

Maximum AC Output	3600 watts
Rated AC Output	3000 watts
Displacement/Engine	212cc Mi-T-M OHV
Alternator	Brushed 120V, 60Hz
Maximum Amps (120V/240V)	30.0
Continuous Amps (120V/240V)	25.0
Receptacles	(2) 120V 20A GFCI duplex; (1) 120V 30A twist lock
Circuit Breakers	(1) Main circuit breaker; (2) 20A circuit breaker, single pole; (1) 10A DC breaker
Rated Speed	3600 RPM
Fuel Capacity	4.0 gallon
Run Time (at full load)	8.5 hours
Idle Control	No
Wheel Kit	No
