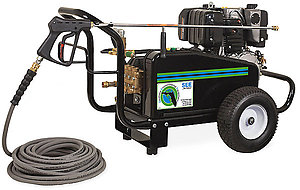

Cold Water Diesel Belt Drive CW-3004-0MKD
CW-3004-0MKD
Pump: Belt drive triplex piston General pump with ceramic plungers · External bypass system allows more water into the system to protect from heat build-up · Stainless-steel and brass unloader with fixed pressure · Forged brass manifold · Thermal relief valve · Water filter with clear screen for screen inspection
Engine: Professional Kohler KD440 OHV diesel engine with electric start (battery included)
Frame: Powder coated steel frame and base plate with 1 1/4-inch tube handles · Enclosed powder coated belt guard · Convenient hose wrap and gun/wand holder · Solid steel threaded axle · Flat-free tires · Dual rubber isolators
Component: Dual cogged belt drive system for increased belt life
Unit Includes: Quick connect nozzles (0º, 15º, 25º and 40º) · 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors · Professional-grade insulated trigger gun with safety lock-off · 36-inch lance with rubber grip
Specifications
| PSI | 3000 |
| GPM | 3.9 |
| Horsepower/Engine | 9.1 HP Kohler KD440 OHV with electric start - battery included |
| Pump | General |
| Unloader | Preset pressure |
| Nozzles | 0°, 15°, 25° & 40° |
| Lance | 36in. |
| Fuel Tank Capacity | 1.3 gallon |
| Drive Type | Belt Drive Pressure Washers |
| Mobility | Portable Pressure Washers |
| Water Temperature | Cold Water Pressure Washers |
Weights & Dimensions
| Net Weight | 245.00 lbs. |
| Shipping Weight | 321.00 lbs. |
| Length | 46.00 in. |
| Width | 28.00 in. |
| Height | 30.00 in. |
Insulated Dual Lance CX-0005
Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 48-inch
Roll Cage CX-0054
Designed for cold water pressure washers to protect equipment, comes with a lifting hook, 1 1/4-inch powder coated steel tubing
