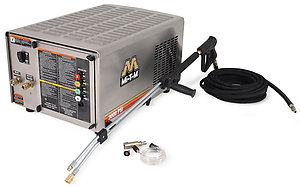

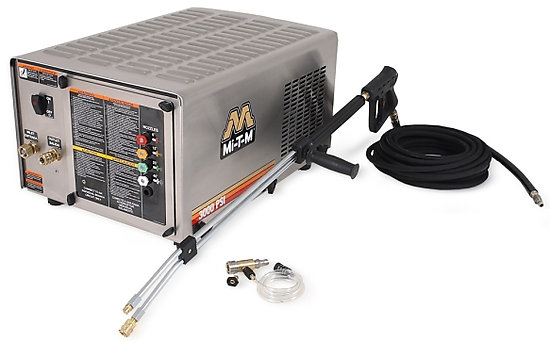

Cold Water Electric Belt Drive Stationary CW-3004-SME3
CW-3004-SME3
Pump: Belt drive triplex piston General pump with ceramic plungers · Stainless-steel and brass unloader · Forged brass manifold · Thermal relief valve · In-line water strainer · Quick connect low pressure detergent injection · Bypass system · Pump accepts incoming water up to 175ºF
Motor: Open drip-proof motor · 4-foot electrical cord with ground fault circuit interrupter
Frame: Easy-to-access cabinet design · Four rubber isolators · Removable panel for pump access · Stainless-steel base and frame
Component: Dual cogged belt drive system · Conveniently located on/off switch · Time delay shutdown will shut unit off automatically when trigger gun is released and timer reaches setting
Unit Includes: Quick connect nozzles (0º, 15º, 25º and 40º) · 50-foot x 3/8-inch hose with quick connects, swivel and bend restrictors · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance
Specifications
| PSI | 3000 |
| GPM | 3.5 |
| Horsepower/Motor | 8.0 HP, 230V, 3Ø, 20.0A |
| Pump | General |
| Unloader | Factory preset |
| Plug Type | NEMA L15-30P |
| Nozzles | 0°, 15°, 25° & 40° |
| Lance | Adjustable, dual |
| Drive Type | Belt Drive Pressure Washers |
| Mobility | Stationary Pressure Washers |
| Water Temperature | Cold Water Pressure Washers |
Weights & Dimensions
| Net Weight | 234.00 lbs. |
| Shipping Weight | 292.00 lbs. |
| Length | 29.50 in. |
| Width | 20.50 in. |
| Height | 15.00 in. |
Auto Start/Stop CX-0069
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
460V, 3-Phase Models CX-0077
For when you have 460V of power available
Remote Box CX-0078
Adds control box which may be mounted away from unit to control on/off, not available on models with auto start/stop
Hour Meter CX-0096
Displays number of hours unit has been in operation
