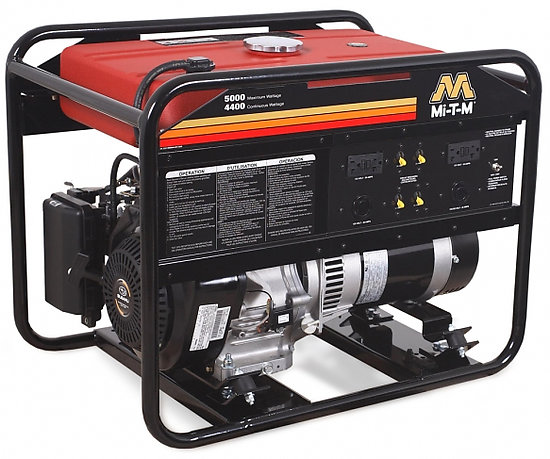

5000 Watt Gasoline GEN-5000-0MS0

GEN-5000-0MS0

Engine: Subaru OHC low-oil shutdown engine

Alternator: Brushless 120V/240V alternator · Total harmonic distortion (THD) less than 5% · 100% copper windings

Frame: Low profile, compact design · Angled isolator design features four neoprene isolators · Heavy-duty wraparound frame with 1-inch powder coated steel tubing

Components: Easy-to-read fuel gauge · Fuel shutoff valve · Full power switch · Fuel tanks are powder coated outside, zinc-plated inside to prevent rusting · Heavy-duty industrial air cleaners hold up under extreme conditions · Large low-tone mufflers to reduce noise to lowest level possible · Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles

Miscellaneous: USDA/USFS-approved spark arrestors · Circuit breaker protected

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.

Specifications

Maximum AC Output 5000 watts
Rated AC Output 4400 watts
Displacement/Engine 287cc Subaru OHC
Alternator Brushless 120V/240V, 60Hz
Maximum Amps (120V/240V) 41.7/20.8
Continuous Amps (120V/240V) 36.7/18.3
Receptacles (2) 120V 20A GFCI duplex; (1) 120V 30A twist lock; (1) 120V/240V 20A twist lock
Circuit Breakers (2) 20A toggle circuit breaker, single pole; (1) 20A toggle circuit breaker, double pole; (1) 30A toggle circuit breaker, single pole
Rated Speed 3600 RPM
Decibel Rating 73.8
Fuel Capacity 5.7 gallon
Run Time (at full load) 6.8 hours
Fuel Shut-Off Valve Yes
Fuel Gauge Yes, easy-to-read
Full Power Switch Yes

Weights & Dimensions

Net Weight 176.00 lbs.
Shipping Weight 198.00 lbs.
Length 29.00 in.
Width 19.75 in.
Height 22.50 in.

Hour Meter GX-0004

Displays number of hours the unit has been in operation
