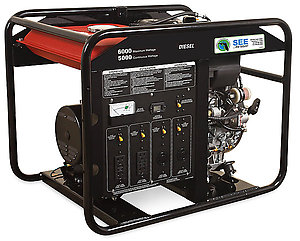

GEN-6000-0MKD

Engine: Industrial Kohler KD440 OHV diesel engine with electric start (battery included)

Alternator: Brushless 120V/240V alternator · Total harmonic distortion (THD) less than 5% · 100% copper windings

Frame: Heavy-duty wraparound frame with 1-inch powder coated steel tubing · Low profile, compact design · Angled isolator design features six neoprene isolators

Components: Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Fuel shutoff valve · Easy-to-read fuel gauge · Voltmeter/hour meter · Fuel tanks are powder coated outside, zinc-plated inside to prevent rusting · Heavy-duty industrial air cleaners hold up under extreme conditions

Miscellaneous: Circuit breaker protected

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.

Specifications

Maximum AC Output	6000 watts
Rated AC Output	5000 watts
Horsepower/Engine	9.1 HP Kohler KD440 OHV with electric start - battery included
Alternator	Brushless 120V/240V, 60Hz
Maximum Amps (120V/240V)	50.0/25.0
Continuous Amps (120V/240V)	41.7/20.8
Receptacles	(2) 120V 20A GFCI duplex; (1) 120V 30A twist lock; (1) 120V/240V 20A twist lock
Circuit Breakers	(1) Main circuit breaker; (2) 20A toggle circuit breaker, single pole; (1) 20A toggle circuit breaker, double pole; (1) 30A toggle circuit breaker, single pole
Rated Speed	3600 RPM
Decibel Rating	85.0
Fuel Capacity	2.6 gallon
Run Time (at full load)	6.8 hours
