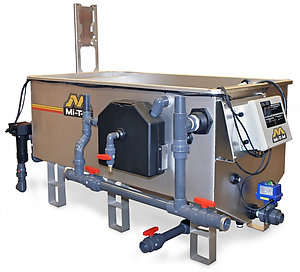

Above-Ground Oil/Water/Solids Separators WOS-30 Series

WOS-30 Series

Mi-T-M has designed mechanical oil/water separator systems to remove free oils before discharging to your sanitary sewer. The oil/water/solids separators will reduce the amount of suspended solids while removing hydrocarbons to meet stringent local sanitary sewer discharge requirements.

Mi-T-M's WOS Series consists of above-ground oil/water/solids separators designed to discharge equipment and vehicle wash-water to sanitary sewers.

The WOS Series offers the following features:

·Ozone is standard
·Stainless-steel tank
·Capability of handling oil and solids conveniently
·Takes up an extremely small footprint
·Easy to maintain
·CSA approved control panel which meets the requirements of the US and Canadian standards for an Industrial Control Panel
·1.0 HP surface-mount sump pump

The WOS Series is perfect for the following applications:

·Rental yards
·Heavy equipment dealers
·Trucking facilities
·Truck rental fleets
·Diesel repair facilities
·Forklift washing operations
·Aircraft maintenance and restoration
·Shipyards
·Municipalities/State DOTs
·Oil fields
·Engine rebuilders and manufacturers
·Military bases

Components:

·CSA listed NEMA-4 rated corrosion-proof control panel for safe and reliable operation
·1.0 HP surface mount sump pump
·Corona discharge ozone system for a "quick kill" of live bacteria on contact
·3-stage stainless-steel tank
·Biofilm generative media that attract oil from the water which then float to the surface
·Oil skimmer/decanter removes oil from the surface
·Sloped stainless-steel tank allows for easy disposal of accumulated solids
·2-inch discharge port for removal of treated water

Models Available:

WOS-30-0M10  120V, 1Ø, 15.0A
WOS-30-0M30  208-230V, 3Ø, 5.0A

Once equipment is washed, the untreated wash-water flows into your pit system. A proper pit system for your application is the first step in proper wash-water treatment, and a critical element in any wash-water recycle system. See our In-ground Fiberglass Pit System for more information or contact Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best with your application.

Specifications

Flow Rate 0-30 GPM
Coalescing Media 1152 sq. ft.
Tank Holding Capacity 340-gallon
In-Line Strainer Pump 1.0 HP, 120V or 230V

Weights & Dimensions

Net Weight 0.00 lbs.
Shipping Weight 865.00 lbs.
Length 97.00 in.
Width 50.00 in.
Height 44.00 in.

Continuous Recirculation WX-0001

Recirculates water back to the pit to prevent water from becoming stagnant.

230V, 1Ø WX-0059

Upgrades 120V model to operate at 230V

460V, 3Ø WX-0060

Upgrades 208-230V model to operate at 460V
