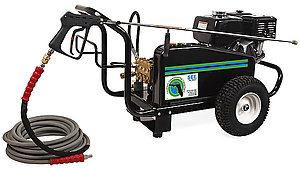

Cold Water Gasoline Belt Drive CW-3504-5MGH
CW-3504-5MGH
Pump: Belt drive triplex piston General pump with ceramic plungers · Stainless-steel and brass Mi-T-M unloader · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection · External bypass system allows more water into system to protect from heat build-up
Engine: Performance-proven Honda GX390 OHV engine with low-oil protection
Frame: Powder coated steel frame and base plate with 1-1/4-inch tube handles · Two-piece belt guard with 1/4-turn release for quick access to belts · Convenient gun/wand holder and hose wrap · Dual rubber isolators · Flat-free tires · Solid steel threaded axle
Component: Dual cogged belt drive system for increased belt life
Unit Includes: Quick connect nozzles (0º, 15º, 25º and 40º) · 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors · Professional-grade insulated trigger gun with safety lock-off · 48-inch lance with rubber grip
Specifications
| PSI | 3500 |
| GPM | 3.8 |
| Displacement/Engine | 389cc Honda GX390 OHV |
| Pump | General |
| Unloader | Mi-T-M, preset pressure |
| Nozzles | 0°, 15°, 25° & 40° |
| Lance | 48in. |
| Drive Type | Belt Drive Pressure Washers |
| Mobility | Portable Pressure Washers |
| Water Temperature | Cold Water Pressure Washers |
Weights & Dimensions
| Net Weight | 216.00 lbs. |
| Shipping Weight | 290.00 lbs. |
| Length | 46.00 in. |
| Width | 28.00 in. |
| Height | 30.00 in. |
Insulated Dual Lance CX-0005
Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 48-inch
Electric Start (battery included) CX-0045
For easy starting
Roll Cage CX-0054
Designed for cold water pressure washers to protect equipment, comes with a lifting hook, 1 1/4-inch powder coated steel tubing
