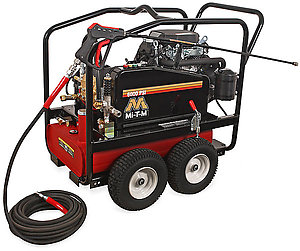

Cold Water Gasoline Belt Drive CWC-6004-4MGH

CWC-6004-4MGH

Pump: Belt drive triplex piston General pump with ceramic plungers · External bypass system allows more water into the system to protect from heat build-up · Preset stainless-steel and brass unloader · Forged brass manifold · Thermal relief valve · Safety relief valve · Water filter with clear sleeve for screen inspection · Pump oil drain

Engine: Performance-proven Honda GX630 OHV engine with low-oil protection · Electric start (battery included) · Engine oil drain

Frame: Two-piece belt guard with 1/4-turn release for quick access to belts · Convenient gun/wand holder and hose wrap · Industrial frame design includes powder coated steel frame with 1 1/4-inch roll cage, handles and lifting hook · Pneumatic tires · Locking tire brake and solid steel threaded axles

Component: Heavy-duty dual cogged belt drive system with case iron pulleys · Easy start valve · Large canister high mount muffler · Fuel tank has powder coated outside and aluminized steel inside to prevent rusting · 13.0-gallon capacity fuel tank allows for 9.5-hour running time

Unit Includes: Quick connect nozzles (0º, 15º, 25º and 40º) · 50-foot x 3/8-inch high pressure black hose with quick connects, swivel and bend restrictors · Professional-grade insulated trigger gun with safety lock-off · 48-inch lance with rubber grip

Specifications

PSI 6000
GPM 3.7
Displacement/Engine 688cc Honda GX630 OHV with electric start - battery included
Pump General
Unloader Preset pressure
Nozzles 0°, 15°, 25° & 40°
Lance 48in.
Drive Type Belt Drive Pressure Washers
Mobility Portable Pressure Washers
Water Temperature Cold Water Pressure Washers

Weights & Dimensions

Net Weight 408.00 lbs.
Shipping Weight 531.00 lbs.
Length 43.00 in.
Width 27.75 in.
Height 36.00 in.
