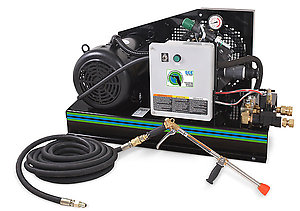

Cold Water Pressure Washer CHV-0525-0ME3

CHV-0525-0ME3

Get more power with less pressure.  This cold water, high volume washer is the perfect answer for applications that require cleaning of heavy solids, especially from large industrial equipment.  Ideal for wash bay set-ups.

Cold water stationary electric belt driven pressure washer.....part of the WC Series.

Features include:

·Belt drive diaphragm pump with pulsation dampener
·Pressure regulator with manual dump lever and gauge
·Makeup water shut-off solenoid and flow switch on outlet for time delay shutdown
·Totally enclosed fan-cooled electric motor with thermal overload protection
·10-foot power cord
·Time delay shutdown
·50-foot x 3/4-inch non-marking hose with quick connects
·Stainless-steel long range nozzle
·High volume gun with adjustable pattern from straight stream to cone mist

Specifications

GPM @ PSI 25 @ 500
Horsepower/Motor 10.0 HP, 230V, 3Ø, 25.6A

Weights & Dimensions

Net Weight 0.00 lbs.
Shipping Weight 407.00 lbs.
Length 38.00 in.
Width 23.50 in.
Height 24.00 in.

300-Gallon Tank CX-0072

300-gallon tank with stand, suction hose and float

460V, 3-Phase Models CX-0073

For when you have 460V of power available

18-Inch Stand CX-0074

Raises unit off of ground

Remote Start Control Box CX-0075

For when unit is not near spraying location
