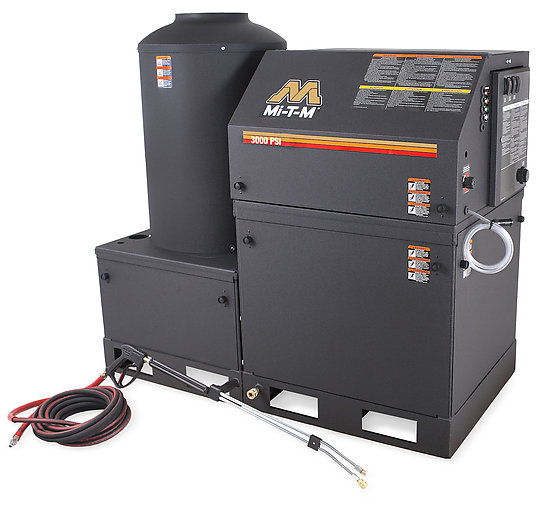

Hot Water Natural Gas/LP Belt Drive HEG-3005-0E5G
HEG-3005-0E5G
Designed and specified by industry professionals, the HEG Series offers you the most efficient wash bay set-up on the market.
Pump: Belt drive triplex piston General pump with ceramic plungers · Thermal relief valve
Motor: Open drip-proof electric motor with manual thermal overload protection
Frame: Powder coated steel frame with removable side panels
Components: 1/2-inch schedule 80 pipe coil with heat exchanger · Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 10-inch draft diverter · 24V control system · Adjustable thermostat · Pressure switch and over-pressure safety controls · Polyethylene float tank (4-gallon with in-line screen filter) · Electronic ignition with standing pilot light
Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F (250°F/121°C outlet temperature with steam option)
Unit Includes: Quick connect nozzles - 0°, 15°, 25°, 40° and fixed detergent nozzle · 50-foot x 3/8-inch steel wire-braided high pressure hose · Adjustable pressure insulated dual lance with fixed detergent nozzle · Insulated trigger gun with safety lock-off
Specifications
PSI | 3000 |
GPM | 4.8 |
Horsepower/Motor | 10.0 HP, 575V, 3Ø, 10.0A |
Natural Gas BTU per hour | 338,000 |
LP Gas BTU per hour | 326,000 |
Drive Type | Belt Drive Pressure Washers |
Mobility | Stationary Pressure Washers |
Water Temperature | Hot Water Pressure Washers |
Weights & Dimensions
Net Weight | 758.00 lbs. |
Shipping Weight | 878.00 lbs. |
Length | 56.50 in. |
Width | 29.00 in. |
Height | 49.75 in. |
Liquid Propane (vapor only) HX-0105
Converts natural gas pressure washer to operate on liquid propane (vapor only)
Hour Meter HX-0106
Displays number of hours unit has been in operation
Time Delay Shutdown HX-0107*
Timer will shut unit off automatically when trigger gun is released and timer reaches setting
*Consult factory before ordering this option.
(1) Remote Station (auto start/stop N/A) HX-0108*
Adds control box which may be mounted away from unit to control on/off, burner and soap injection
*Consult factory before ordering this option.
Time Delay Shutdown and First Remote Box HX-0109*
Timer will shut unit off automatically when trigger gun is released and timer reaches setting; Adds control box which may be mounted away from unit to control on/off, burner and soap injection
*Consult factory before ordering this option.
Additional Remotes (up to 3) HX-0110
Additional remotes that may be added to unit after the first remote is installed
Auto Start/Stop HX-0111
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
K7 Unloader, Flow Activated (auto start/stop N/A) HX-0112
Converts pressure trapping unloader system to flow actuated K7 unloader. Pressure is not trapping in the discharge line when trigger is released.
Dual Gun HX-0114
Two guns may be sprayed at the same time, flow is divided between the two guns while each operator maintains equal system pressure
Stainless-Steel Access Panels HX-0115
Converts powder coated painted access panels to stainless-steel material
Stainless-Steel Coil Wrap HX-0116
Converts powder coated painted coil wrap to stainless-steel material
Painted Box Kit HX-0117
Adds painted side and end panels
Painted Stainless-Steel Box Kit HX-0118
Adds stainless-steel side panels and painted end panels
250°F Steam HX-0122
Steam option adjusts unloader valve counter-clockwise increasing outlet temperature to 250°F while lowering system pressure
Auto Start/Stop and First Remote HX-0124
When trigger gun is released timer will turn unit off, when trigger gun is pulled unit will restart; Adds control box which may be mounted away from unit to control on/off, burner and soap injection
All Stainless-Steel Frame and Hardware on Modular Units HX-0154
Converts powder coated painted frame and hardware to stainless-steel material
Elevated Float Tank, 5.0 GPM HX-0217
Float tank is located at the back of the unit
