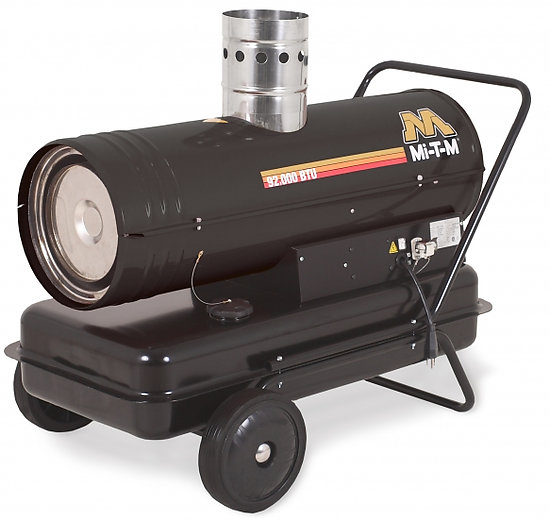

Kerosene Indirect Ductable MH-0092-0MIH
MH-0092-0MIH
Frame: Powder coated steel frame, handle and tank · Heavy-duty tires for easy mobility
Burner: Stainless-steel combustion chamber · Direct spark ignition
Motor: Heavy-duty, high quality cast aluminum electric motor
Components: Safety switch prevents overheating · Suitable for air ducting · Easy to operate controls · High capacity fuel tank · Electronic flame control · Automatic ignition · Water resistant control box · Automatic fuel shut-off · Rotary pump compressor · Compact design · Thermostat plug
Functions on: Kerosene or No. 1 and No. 2 fuel oil.
For use on construction sites and applications where the heat will be ducted into a building.
Specifications subject to change without notice. Use in accordance with any and all state or local codes, regulations, and/or ordinances.
Please see heater "Owner's Manual" included with each heater for a complete list of important safety information.
Important Notes:
-Not for use in residential living areas or inadequately ventilated areas.
-Proper ventilation required during operation.
-Must be plugged into an approved standard electrical outlet for operation.
Specifications
| Heat Output | 92,000 BTU |
| Hot-Air Flow | 557 CFM |
| AC Power | 115V, 60Hz, 1Ø, 4.0 Amps |
| Power Consumption | 250 watts |
| Fan Static Pressure | 0.5in. WC |
| Fuel Tank Capacity | 12.0 gallon |
| Fuel Consumption | 0.66 gal./hr. |
| Fuel Pump | No |
| Fuel Filter | No |
| Temperature Rise | 120°F |
| Maximum Output Temperature | 240°F |
| Maximum Operating Hours | 18.0 hours |
| Maximum Duct Size (LxDiameter) | 15ft.x12in. |
| Heat Source | Kerosene |
Weights & Dimensions
| Net Weight | 88.00 lbs. |
| Shipping Weight | 93.00 lbs. |
| Length | 36.60 in. |
| Width | 22.10 in. |
| Height | 24.60 in. |
