Pretreatment Systems WTA Series
WTA Series
Optional custom biological units are available within the BIO Series family to satisfy your specific applications needs. These set-ups offer your choice of 300-gallon or 600-gallon tank(s).
Pretreatment Systems – 300-Gallons
WTA-300-0M10
1 - 12-0072; includes 300-gallon tank with manual dump valve
1 - 20-1282A01; includes tank stand
WTA-300CL-0M10 (Single Phase)
WTA-300CL-0M30 (Three Phase)
1 - 12-0072; includes 300-gallon tank with manual dump valve
1 - 20-1282A01; includes tank stand
1 - 3-0328; includes sump pump
WTA-300EXP-0M10 (Single Phase)
WTA-300EXP-0M30 (Three Phase)
1 - 12-0072; includes 300-gallon tank with manual dump valve
1 - 20-1282A01; includes tank stand
2 - 21-0203; includes coalescing main media frame
2 - 21-0204; includes coalescing side media frame
1 - 3-0321; includes aeration pump, ¾ HP, 3Ø
1 - 3-0331; includes aeration pump, ¾ HP, 1Ø
1 - 55-0033; includes Mazzei venturi injector
WTA-300SA-0M10 (Single Phase)
WTA-300SA-0M30 (Three Phase)
1 - 12-0072; includes 300-gallon tank with manual dump valve
1 - 20-1282A01; includes tank stand
2 - 21-0203; includes coalescing main media frame
2 - 21-0204; includes coalescing side media frame
1 - 3-0220; includes peristaltic pump
1 - 3-0321; includes aeration pump, ¾ HP, 3Ø
1 - 3-0331; includes aeration pump, ¾ HP, 1Ø
1 - 55-0033; includes Mazzei venturi injector
Pretreatment Systems – 600-Gallons
WTA-600-0M11
1 - 12-0069; includes 600-gallon tank with manual dump valve
1 - 20-1287A01; includes tank stand
WTA-600CL-0M11 (Single Phase)
WTA-600CL-0M31 (Three Phase)
1 - 12-0069; includes 600-gallon tank with manual dump valve
1 - 20-1287A01; includes tank stand
1 - 3-0328; includes sump Pump
WTA-600EXP-0M11 (Single Phase)
WTA-600EXP-0M31 (Three Phase)
1 - 12-0069; includes 600-gallon tank with manual dump valve
1 - 20-1287A01; includes tank stand
2 - 21-0203; includes coalescing main media frame
2 - 21-0204; includes coalescing side media frame
1 - 3-0321; includes aeration pump, ¾ HP, 3Ø
1 - 3-0331; includes aeration pump, ¾ HP, 1Ø
1 - 55-0033; includes mazzei venturi injector
WTA-600SA-0M11 (Single Phase)
WTA-600SA-0M31 (Three Phase)
1 - 12-0069; includes 600-gallon tank with manual dump valve
1 - 20-1287A01; includes tank stand
2 - 21-0203; includes coalescing main media frame
2 - 21-0204; includes coalescing side media frame
1 - 3-0220; includes peristaltic pump
1 - 3-0321; includes aeration pump, ¾ HP, 3Ø
1 - 3-0331; includes aeration pump, ¾ HP, 1Ø
1 - 55-0033; includes mazzei venturi injector
Leg extensions are available upon request, consult factory.
pH Control System, 230V WX-0037
For when pH adjustment is needed
Pinch Valve Assembly WX-0014
Pinch valve, bladder style (used on cone-bottom tanks), 2-inch, 230VAC, single phase, may be accommodated as 115VAC, single phase
Electric Dump Valve WX-0011
230V, 1 1/2-inch, auto dump option
Electric Dump Valve WX-0012
115V, 1 1/2-inch, auto dump option
Pinch Valve Assembly WX-0013
Pinch valve, bladder style (used on cone-bottom tanks), 1 1/2-inch, 230VAC, single phase, may be accommodated as 115VAC, single phase.
Pinch Valve Assembly WX-0038
Pinch valve, bladder style (used on cone-bottom tanks), 1 1/2-inch, 120VAC
Pinch Valve Assembly WX-0039
Pinch valve, bladder style (used on cone-bottom tanks), 2-inch, 120VAC, single phase
pH Control System, 120V WX-0102
For when pH adjustment is needed
Floating Media WX-0115
Ideal for tanks with small openings, greater gestation
Floating Media WX-0116
Ideal for tanks with small openings, greater gestation
High Solids Media WX-0118
Allows for debris to travel easily through media with vertical design
High Solids Media WX-0119
Allows for debris to travel easily through media with vertical design
Hour Meter WX-0128
Displays the number of hours unit has been in operation

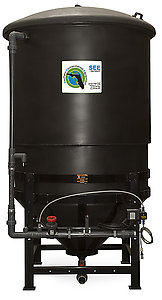

Coagulation System WX-0133
used in heavy solids applications; helps dirt and solids settle for easy removal
