AGW-SH22-20M

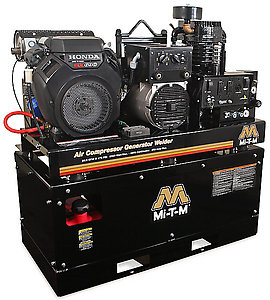

Offering the convenience of three machines in one, this model combines a 220-amp arc welder, two-stage air compressor and a 5000-watt generator with a 688cc Honda GX690 OHV engine. You'll save space and money and reduce your load capacity with this new combination unit. And with only one engine powering these components, you'll also save time on serving parts and maintenance.

Operation
Generator Mode
AC current only · Selector switch set to idle down –engine will idle down when generator is not in use and tank pressure is 175 PSI · Switch is set to full throttle –engine will run full throttle continuously

Welder Mode
DC current only · Selector switch must be set to full throttle

Compressor Pump: Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Durable stainless-steel braided discharge hose · Quality pilot valve unloader

Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings

Welder: 220 DCA arc welder · Amperage selection switch

Frame: Powder coated ASME coded 20-gallon receiver tank · 1/4-inch base plate to reduce vibration · 14-gauge powder coated four-piece belt guard

Components: Belt tightening system pulls engine straight to ensure constant belt alignment · Manual drain valves for proper maintenance · Regulator and two gauges for tank and outlet pressure · 16.5-inch fly wheel for extra cooling and longer life · 10-gallon fuel tank capacity

*Equipped with 150-PSI maximum rated regulator.

Specifications

Displacement/Engine	688cc Honda GX690 OHV with electric start - cables are included; battery not included
Rated Speed	3600 RPM
CFM @ 90 PSI	30.5
CFM @ 175 PSI	29.0
Compressor	Two Stage, cast iron
Tank Size	20-gallon receiver tank
Maximum AC Output	5000 watts
Rated AC Output	4500 watts
Alternator Wattage Continous On-Load @ 90 PSI	4500 watts
Alternator Wattage Continous On-Load @ 175 PSI	4500 watts
Frequency/Voltage	60Hz/120V/240V
Maximum Amps (120V/240V)	41.5/20.8
Continuous Amps (120V/240V)	37.5/18.8
Receptacles	(2) 120V 20A GFCI duplex; (1) 120V/240V 20A twist lock
Duty Cycle (10 Minute Run Time)	220A @ 40%, 190A @ 60%, 150A @100%
DC Voltage	50-220A Working Range
Fuel Tank	10 gallon
