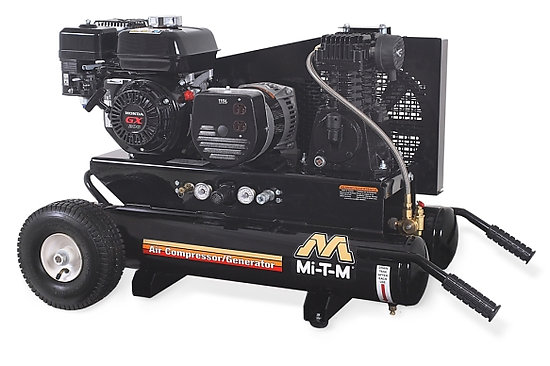

8-Gallon Single Stage Gasoline AG1-PR07-08M1

AG1-PR07-08M1

Compressor Pump: Quality cast iron single stage compressor · Durable stainless-steel braided discharge hose for longer life · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter

Generator: Brushless alternator · Industrial 1800-watt generator with two NEMA 5-20R receptacles · Total harmonic distortion (THD) less than 5% · 100% copper windings

Engine: Industrial Subaru OHC engine

Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts · Convenient lifting handles

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12-inch flywheel for extra cooling and longer life · Quality pilot valve unloader · Belt tightening system pulls engine straight to ensure constant belt alignment

Specifications

CFM @ 90 PSI 12.4
CFM @ 125 PSI 10.9
Alternator Wattage/Maximum Output 1800 watts
Alternator Wattage/Continous with Compressor On-Load 600 watts
Alternator Wattage/Continous with Compressor Off-Load 1600 watts
Receptacles (2) NEMA 5-20R
Displacement/Engine 211cc Subaru OHC
Compressor Single stage, cast iron
Mobility Portable Air Compressor/Generators
Stage Single Stage Air Compressor/Generators

Weights & Dimensions

Net Weight 207.00 lbs.
Shipping Weight 257.00 lbs.
Length 44.50 in.
Width 26.00 in.
Height 27.50 in.

Electric Start (battery and cables not included) AX-0067

For easy starting
