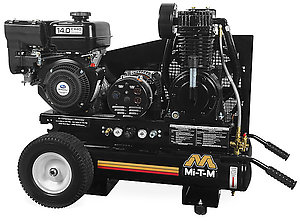

8-Gallon Two Stage Gasoline AG2-PS14-08M1^


Your 8-gallon air compressor/generator will run your air and electric tools from one convenient machine, in times of power failure use the generator as a backup power source.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 5% · 100% copper windings · Comes standard with (2) 120V, 20A and (1) 240V, 20A receptacles

Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · Flat-free tires

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16.5-inch fly wheel · Quality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator.
^Option AX-0065 cannot be mounted at the factory but can be shipped with the unit for custom mounting. Consult factory for more information.


CFM @ 90 PSI 16.4
CFM @ 175 PSI 15.7
Alternator Wattage/Maximum Output 4000 watts
Alternator Wattage/Continous with Compressor On-Load 2300 watts
Alternator Wattage/Continous with Compressor Off-Load 3500 watts
Receptacles (2) NEMA 5-20R, (1) NEMA L6-20R
Displacement/Engine 404cc Subaru EX40 OHC
Compressor Two Stage, cast iron
Mobility Portable Air Compressor/Generators
Stage Two Stage Air Compressor/Generators

Weights & Dimensions

Net Weight 375.00 lbs.
Shipping Weight 450.00 lbs.
Length 52.00 in.
Width 28.00 in.
Height 34.00 in.

Lifting Hook AX-0028

For easier portability

Electric Start (battery, box and cables not included) AX-0062

For easy starting

Electric Start (battery box and cables included, battery not included) AX-0065

For easy starting

Idle Down AX-0069

When activated it automatically throttles down engine to conserve fuel, includes electric start - battery not included
