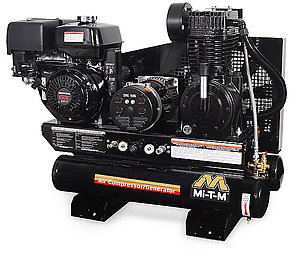

8-Gallon Two Stage Gasoline AG2-SH13-08M1^

AG2-SH13-08M1

Compressor Pump: Quality cast iron two stage compressor · Durable stainless-steel braided discharge hose for longer life · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter

Generator: Brushless alternator · Comes standard with (2) 120V, 20A and (1) 240V, 20A receptacles · Total harmonic distortion (THD) less than 5% · 100% copper windings

Engine: Industrial Honda GX390 OHV engine

Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch flywheel for extra cooling and longer life · Quality pilot valve unloader · Belt tightening system pulls engine straight to ensure constant belt alignment

*Equipped with 150-PSI maximum rated regulator.
^Option AX-0064 cannot be mounted at the factory but can be shipped with the unit for custom mounting. Consult factory for more information.

Specifications

CFM @ 90 PSI 16.4
CFM @ 175 PSI 15.7
Alternator Wattage/Maximum Output 4000 watts
Alternator Wattage/Continous with Compressor On-Load 2300 watts
Alternator Wattage/Continous with Compressor Off-Load 3500 watts
Receptacles (2) NEMA 5-20R, (1) NEMA L6-20R
Displacement/Engine 389cc Honda GX390 OHV
Compressor Two Stage, cast iron
Mobility Stationary Air Compressor/Generators
Stage Two Stage Air Compressor/Generators

Weights & Dimensions

Net Weight 365.00 lbs.
Shipping Weight 465.00 lbs.
Length 44.00 in.
Width 22.00 in.
Height 34.00 in.

Lifting Hook AX-0028

For easier portability

Electric Start (battery box and cables included, battery not included) AX-0064

For easy starting

Electric Start (battery, box and cables not included) AX-0019

For easy starting

Idle Down AX-0068

When activated it automatically throttles down engine to conserve fuel, includes electric start - battery not included

Remote Start/Choke IX-0055

6-foot wire extension for key switch

Request More Information
