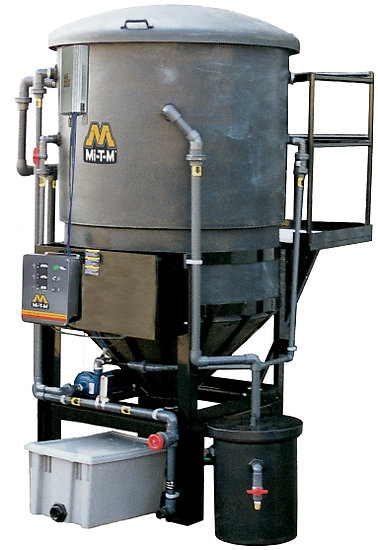

Clarifier and Oil/Water Separator WCL-10S-0M10*+


Mi-T-M has designed mechanical oil/water separator systems to remove free oils before discharging to your sanitary sewer. The oil/water/solids separators will reduce the amount of suspended solids while removing hydrocarbons to meet stringent local sanitary sewer discharge requirements.

The WCL Series offers the following features:

·300-gallon cone-shaped tank for effective settling and easy handling of solids
·1.0 HP surface-mount sump pump
·Solids separation chamber with bag filter and decanting
·Oil skimmer and decaneter for easy handling of oil
·CSA approved control panel which meets the requirements of the US and Canadian standards for an Industrial Control Panel

The WCL Series is perfect for the following applications:

·Rental yards
·Heavy equipment dealers
·Trucking facilities
·Truck rental fleets
·Diesel repair facilities
·Forklift washing operations
·Aircraft maintenance and restoration
·Municipalities/State DOTs
·Oil fields
·Engine rebuilders and manufacturers
·Military bases
·Golf courses


·1.0 HP surface mount sump pump
·Solids separation chamber which effectively captures solids for easy disposal
·Oil decanter for easy removal of oil from surface of clarifier tank
·300-gallon con-shaped clarifier tank which settles solids

Once equipment is washed, the untreated wash-water flows into your pit system. A proper pit system for your application is the first step in proper wash-water treatment, and a critical element in any wash-water recycle system. See our In-ground Fiberglass Pit System for more information or contact Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best with your application.

*Float consists of 230V plug.
+Control panel not included.
Surface-mount sump pump included on all models.


Flow Rate 0-10 GPM
Clarifier Tank 300-gallon
Oil Coalescing Area 48 sq. ft.
Power Requirements 230V, 1Ø, 8.0A

Weights & Dimensions

Net Weight 0.00 lbs.
Shipping Weight 641.00 lbs.
Length 48.00 in.
Width 67.00 in.
Height 97.00 in.
