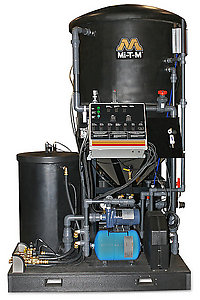

Clarifier Wash-Water Recycle Systems WCP-10 Series

WCP-10 Series

Separates oil, water and solids.

Mi-T-M's recycle systems are designed to remove free hydrocarbons and filter the water to be sent back through a pressure washer. The systems come standard with pH and ORP injection. All systems are designed for corrosion resistance by utilizing poly tanks and recycled-plastic skids.

The WCP Series recycle systems combine enhanced design with state-of-the-art technology to offer:

·Cone-shaped tank for easy handling of accumulated solids
·Easy operation and maintenance
·CSA approved control panel which meets the requirements of the US and Canadian standards for an Industrial Control Panel
·Heavy-duty, corrosive-resistant base for years of maintenance-free operation
·Quality recycled wash-water without common odor problems

The WCP Series is perfect for the following applications:

·Rental yards
·Heavy equipment dealers
·Trucking facilities
·Truck rental fleets
·Diesel repair facilities
·Forklift washing operations
·Aircraft maintenance and restoration
·Municipalities/State DOTs
·Oil fields
·Engine rebuilders and manufacturers
·Military bases
·Golf courses


·CSA listed NEMA-4 rated corrosion-proof control panel for safe and reliable operation
·Hose connectors are designed for easy accessibility and quick installation, the connectors are clearly marked
·Filter pumps are easily accessible
·1.0 HP surface mount sump pump
·Cone-shaped oil/water/solids separator for easy oil separation
·ORP controller measures and injects a germicide to control odor
·pH controller keeps water at the appropriate pH level
·Oil skimmer/decanter removes oil from the surface
·Activated carbon filter
·Solids separation chamber for effective capture and easy disposal
·Customized multi-media filter filters out particulates down to 25 microns
·Reusable polyester filter removes smaller particulates down to 30 microns

Models Available:

WCP-10-0M10           230V, 1Ø, 30.0A  250 lb. media filter  100 sq. ft. cartridge filter
WCP-10AB-0M10*  230V, 1Ø, 30.0A  350 lb. media filter  60-100 PSI air required
WCP-10AB-0M30*  230V, 3Ø, 15.0A  350 lb. media filter  60-100 PSI air required

Once equipment is washed, the untreated wash-water flows into your pit system. A proper pit system for your application is the first step in proper wash-water treatment, and a critical element in any wash-water recycle system. See our In-ground Fiberglass Pit System for more information or contact Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best with your application.

*Auto-backwash models (air required 60 to 100-PSI)

230/208/460V 3-phase available on all models.


Flow Rate 0-10 GPM
Clarifier Tank 300-gallon
Carbon Filter 110 lb.
Oil Coalescing Area 275 sq. ft.
Ozone Generator 6 grams/day

Weights & Dimensions

Net Weight 0.00 lbs.
Shipping Weight 2400.00 lbs.
Length 60.00 in.
Width 96.00 in.
Height 108.00 in.

Pinch Valve Assembly WX-0039

 Pinch valve, bladder style (used on cone-bottom tanks), 2-inch, 120VAC, single phase

460V, 3Ø WX-0123

Upgrades 230V model to operate at 460V
