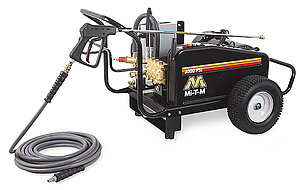

Cold Water Electric Belt Drive CW-3005-0ME3


Pump: Belt drive triplex piston General pump with ceramic plungers · Stainless-steel and brass unloader · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection · External bypass system creates less heat build-up

Motor: Totally enclosed fan-cooled electric motor with thermal overload protection · 10-foot power cord

Frame: Powder coated steel frame and base plate with tube handles · Convenient gun/wand holder and hose wrap · Solid steel threaded axle · Dual rubber isolators · Pneumatic tires · Totally enclosed powder coated steel belt guard

Component: Heavy-duty dual cogged belt system and cast-iron pulleys

Unit Includes: Quick connect nozzles (0º, 15º, 25º and 40º) · 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors · Professional-grade insulated trigger gun with safety lock-off · 36-inch lance with rubber grip


PSI 3000
GPM 4.8
Horsepower/Motor 10.0 HP, 230V, 3Ø, 26.0A or 10.0 HP, 460V, 3Ø, 13.0A
Pump General
Unloader Factory preset
Plug Type NEMA 15-50P
Nozzles 0°, 15°, 25° & 40°
Lance 36in.
Drive Type Belt Drive Pressure Washers
Mobility Portable Pressure Washers
Water Temperature Cold Water Pressure Washers

Weights & Dimensions

Net Weight 376.00 lbs.
Shipping Weight 450.00 lbs.
Length 45.50 in.
Width 32.50 in.
Height 30.00 in.

Insulated Dual Lance CX-0005

Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 48-inch

460V, 3-Phase Models CX-0062

For when you have 460V of power available

Stationary Option CX-0094

This option will remove the existing tall handle and wheels, which will be replaced with a short handle and rubber feet for stationary applications
