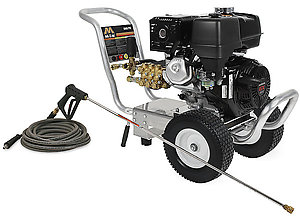

Cold Water Gasoline Direct Drive CA-3504-1MGH*
CA-3504-1MGH
Pump: Direct drive triplex piston General pump with ceramic plungers · Adjustable pressure · Stainless-steel and brass Mi-T-M unloader · Forged brass manifold · Thermal relief valve · In-line water strainer · Model comes stardard with external bypass system which allows more water into the system to protect from heat build-up
Engine: Performance-proven Honda GX390 OHV engine with low-oil protection
Frame: Patented vibration isolation plate with four rubber isolators for reduced movement · Lightweight, corrosion resistance aluminum frame and base plate with 1-1/4-inch tube handles · Convenient nozzle holder for quick connect nozzles · Flat-free tires · Dual rubber isolators
Unit Includes: Quick connect nozzles (0º, 15º and 25º) · 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors · Professional-grade insulated trigger gun with safety lock-off · 48-inch lance with rubber grip
*Model comes standard with external bypass system.
Specifications
| PSI | 3500 |
| GPM | 4.0 |
| Displacement/Engine | 389cc Honda GX390 OHV |
| Pump | General |
| Unloader | Mi-T-M, adjustable pressure |
| Nozzles | 0°, 15° & 25° |
| Lance | 48in. |
| Drive Type | Direct Drive Pressure Washers |
| Mobility | Portable Pressure Washers |
| Water Temperature | Cold Water Pressure Washers |
Weights & Dimensions
| Net Weight | 125.00 lbs. |
| Shipping Weight | 175.00 lbs. |
| Length | 42.50 in. |
| Width | 23.50 in. |
| Height | 24.50 in. |
Insulated Dual Lance CX-0005
Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 48-inch
