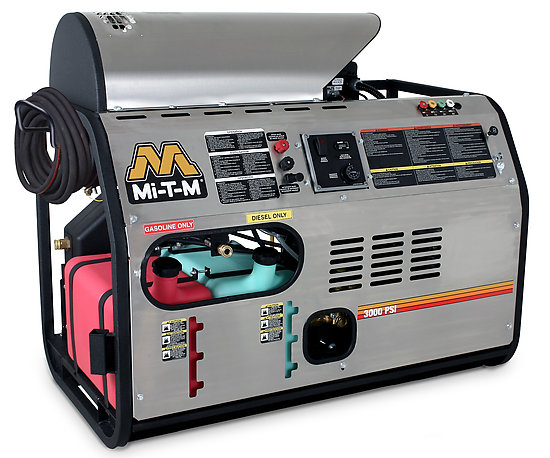

Hot Water Gasoline Belt Drive HDB-3005-0V6G


The HDB Series is a small, compact mini skid that installs easily in tight spaces.

Pump: Belt drive triplex piston General pump · Low pressure detergent injector

Engine: Performance-proven gasoline engine with electric start - battery not included

Frame: Powder coated steel square tube skid frame · Stainless-steel removable front panel · Optional wheel kit with locking tire brake, four tires and solid steel threaded axles

Components: Stainless-steel coil wrap heat exchanger with horizontal schedule 80 pipe coil · 12V Beckett burner - no need for a generator - battery not included · No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous: Adjustable thermostat · Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles 0°, 15°, 25° and 40° · 50-foot x 3/8-inch high pressure hose · Adjustable pressure insulated dual lance · Insulated trigger gun with safety lock-off


PSI 3000
GPM 4.8
Displacement/Engine 480cc Vanguard OHV
Engine Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Capacity 10.0 gallon
Burner Fuel Consumption 2.76 gph
BTU Per Hour 386,400
Drive Type Belt Drive Pressure Washers
Mobility Stationary Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 601.00 lbs.
Shipping Weight 720.00 lbs.
Length 53.50 in.
Width 28.75 in.
Height 42.00 in.

Hour Meter HX-0156

Displays the number of hours unit has been in operation

High Pressure Chemical (K7) HX-0220

Adjustable high pressure chemical, includes float tank

Panel Engine Key Switch HX-0222

Moves engine key switch from engine to front panel

Steam HX-0224

Increases outlet temperature to 250°F, includes steam nozzle and valve

Trapping Unloader HX-0225

For longer hose runs and cleaning elevated areas

Three-Way Ball Valve HX-0226

Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball lever valve

High Pressure Chemical (trapping unloader) HX-0221*

Adjustable high pressure chemical, includes float tank
*Consult factory before ordering this option.
