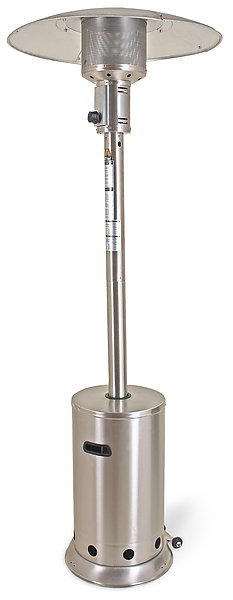

Propane Radiant Outdoor Patio MH-0040-PM10


Frame: Heavy-duty stainless-steel emitter screen · Stainless-steel finish · Rust resistant reflector material · 5-piece reflector assembly · Easy slide cylinder compartment cover · Large diameter support post · 18-inch base diameter · Wheel kit allows for easy portability

Heat Output: Variable heat settings · 360-degree heat radius for even heating

Components: Wind resistant burner system prevents flame from being extinguished, with automatic shut-off if flame is extinguished · Built-in safety tip-over switch · Hose and regulator standard · Single handed ignition controls · Piezo spark push-button ignition

For use on outdoor patios, decks and outdoor restaurants.

Specifications subject to change without notice. Use in accordance with any and all state or local codes, regulations, and/or ordinances.

Please see heater "Owner's Manual" included with each heater for a complete list of important safety information.

Important Notes:
-Not for use in residential living areas or inadequately ventilated areas.
-Proper ventilation required during operation.
-Extremely hot during operation. Keep children, animals and combustible objects away from heater.

*Heat output is at Low and High settings under specifications.


Heat Output* L-22,500/H-40,000 BTU
Fuel Propane
Fuel Consumption 1.86 lb./hr.
Manifold Pressure 11in. WC
Operating Time (20 lb. Cylinder) 10.8 hours
Suggested Cylinder Size 20 lb.
Heating Area 210 sq. ft.
Heat Radius 3600
Wheel Kit Yes
Hose & Regulator Yes
Base Diameter 18in.
Heat Source Propane

Weights & Dimensions

Net Weight 59.00 lbs.
Shipping Weight 68.00 lbs.
Length 32.30 in.
Width 32.30 in.
Height 88.00 in.
