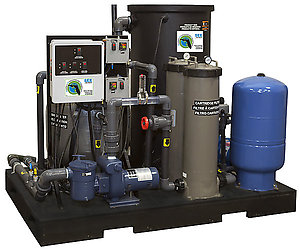

Recycle Systems WTR-10 Series

WTR-10 Series

Mi-T-M's recycle systems are designed to remove free hydrocarbons and filter water to be sent back through a pressure washer or discharge into a sanitary sewer.

WTR series recycle systems combine enhanced design with state-of-the-art technology to offer:

·Quality recycled wash water without common odor problems
·East operation and maintenance
·Poly skid is construction of hardened polymer to be non-corrosive and can be easily lifted and moved with a forklift from all sides
·CSA approved control panel which meets the requirements of the US and Canadian standards for an Industrial Control Panel


·CSA listed NEMA-4 corrosion-proof control panel for safe and reliable operation
·Pumps are easily accessible
·Hose connectors are designed for easy accessibility and quick installation; the connectors are clearly marked
·5 and 30-micron filters

All options can be added to the WTR Series after the initial set-up.

Models Available:

WTR-10-0M10   208-230V, 1Ø, 15.0A
WTR-10-0M30   208-230V, 3Ø, 8.0A

The WTR Series is perfect for the following applications:

·Rental yards
·Heavy equipment dealers
·Trucking facilities
·Military bases
·Truck rental fleets
·Diesel repair facilities
·Forklift washing operations
·Aircraft maintenance & restoration
·Municipalities/State DOTs
·Oil fields
·Engine rebuilders and manufactures


Flow Rate 0-10 GPM
Cartridge Filters 1-5-micron, 100 sq. ft.; 1-30 micron, 100 sq. ft.
Carbon Filter 110 lb.
Filter Pump 1.0 HP
Transfer Pump 1/2 HP
Product Tank 80 gallons
Pressure Tank 20 gallons

Weights & Dimensions

Net Weight 0.00 lbs.
Shipping Weight 750.00 lbs.
Length 72.00 in.
Width 48.00 in.
Height 60.00 in.

pH Controller WX-0130

For whe pH adjustment is needed; 1.0A 48ml/minute chemical pump

ORP Controller WX-0131

For when ORP adjustment is needed; 1.0A 48ml/minute chemical pump

460V Option WX-0132

Changes the power requirements to 460V, 3Ø, 4.0A
