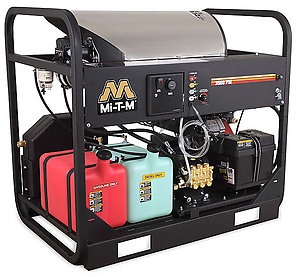

Hot Water Gasoline Belt Drive HDC-3505-0K6G*


The HDC Series is the most affordable and efficient skid on the market today. The best buy for a quick return on investment.

Pump: Belt drive triplex piston General pump with ceramic plungers · Adjustable high pressure detergent injector
Engine: Performance-proven industrial gasoline engine with electric start - battery not included

Frame: Heavy-duty powder coated steel square tube skid frame · Stainless-steel coil wrap prevents rusting

Components: Stainless-steel wrap heat exchanger with 1/2-inch schedule 80 pipe coil · Polyethylene engine and burner fuel tanks · 12V Beckett burner - no need for generator - battery not included · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · Large polyethylene float tank

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose · Adjustable pressure insulated dual lance · Insulated trigger gun with safety lock-off

*Higher performance 624cc Kohler engine


PSI 3500
GPM 4.7
Displacement/Engine 624cc Kohler CH620 OHV
Pump General
Engine Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Capacity 10.0 gallon
Fuel Consumption 2.76 gph
BTU Per Hour 386,400
Drive Type Belt Drive Pressure Washers
Mobility Stationary Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 725.00 lbs.
Shipping Weight 844.00 lbs.
Length 50.00 in.
Width 34.00 in.
Height 46.00 in.

Three-Way Ball Valve HX-0130

Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever

Four-Point Lifting Capability HX-0147

Allows unit to be lifted by crane

Hour Meter HX-0156

Displays the number of hours unit has been in operation

Trapping Unloader HX-0200

For longer hose runs and cleaning elevated areas

Adjustable Temperature Control HX-0212

Operator is able to adjust outlet water temperature between 96°F-250°F

Clutch Drive Pump HX-0230

Stops the pump from spinning in bypass mode and helps to extend the life of the pump, changes GPM to 4.3 when added to the unit

Clutch Drive Pump HX-0266

Stops the pump from spinning in bypass mode and helps to extend the life of the pump, standard flow rate
